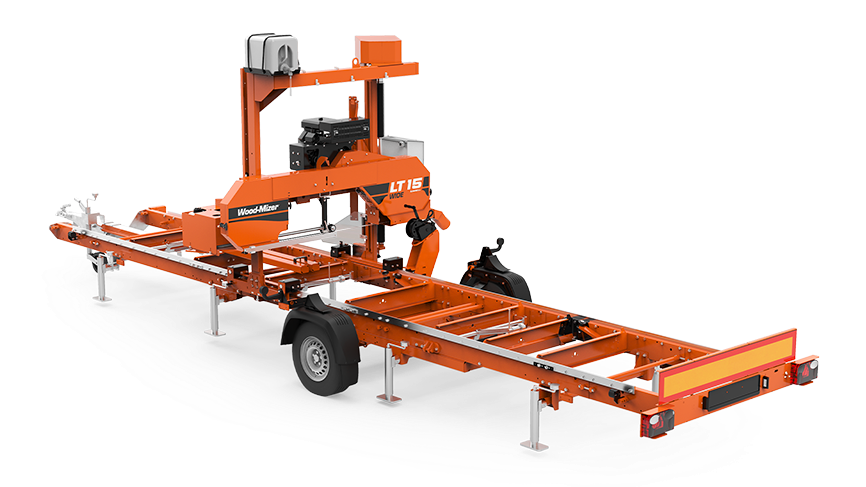

The widest sawmill in LT15 range. Designed to be an affordable entrance to cutting large logs up to 90 cm wide.
The LT15CLASSIC WIDE sawmill has the largest cutting capacity in the LT15 sawmill family. With the ability to cut logs up to 90cm in diameter, the LT15CLASSIC WIDE features a 28% larger capacity than the LT15CLASSIC. The WIDE model is based on the well known LT15CLASSIC sawmill and shares technical solutions in the head, bed and mast constructions.
The standard configuration comes with electric up/down head positioning which improves operator productivity and makes it very affordable to install electronic Setworks. Standard cutting length is 5.4 m, which can be easily extended to any required length thanks to a modular bed construction. The standard blade lubrication system keeps the sawmill blade, wheels and guide rollers clean to increase sawing performance.
Take advantage of the entire Wood-Mizer accessories range for the LT15CLASSIC WIDE by upgrading with a debarker to increase blade life, power feed to improve operation, Setworks to accurately control blade height and other accessories.
The sawmill is shipped on a single pallet with easy to follow assembly instructions and manuals. It is covered by Wood-Mizer’s world renowned customer support and a 2 year warranty.
| Power | |
|---|---|
| Power | 11 kW (E15) Electric25 HP Petrol |
| Cutting Capacity | |
| Max. Log Diameter | 90 cm |
| Max. Width of Cut | 88 cm |
| Max. Cant Width | 82 cm |
| Max. Depth of Cut | 27 cm |
| Head Features and Options | |
| Setworks | SW10 |
| Head Up/Down | Electric (Screw) |
| Head Forward/Reverse | Hand CrankElectric |
| Blade Guide Arm | Manual |
| Blade Lubrication | Electro Valve |
| Blade Tension System | Screw with Gauge |
| Debarker | Optional |
| Sawdust Collection Port Diameter | 101.6 mm (4'') |
| Blade | |
| Length | 4470 mm |
| Width | 32 mm35 mm |
| Thickness | 1.07 mm1.14 mm |
| Blade Wheels | |
| Blade Wheel Diameter | 483 mm |
| Blade Wheel Type | Belted |
| Blade Wheel Material | Cast Iron |
| Bed Features and Options | |
| Bed Construction | Twin Rail |
| Angled Bed Rails | N/A |
| Bed Extensions | Additional Bed Sections: 1.95 m or 2.7 m |
| Trailer Package | N/A |
| Log Handling | |
| Manual | S3 Bed (3 segments 1.95 m each): 6 Side Supports, 3 Manual Log ClampsM2 Bed (2 segments 2.7 m each): 4 Side Supports, 2 Manual Log ClampsLog wedge |
| STANDARD Hydraulic | N/A |
| SUPER Hydraulic | N/A |
| Sawmill Features and Options | |
| Frame Construction | Semi-Cantilever |
| Standards | CE |
| Options | Log Loading RampsCant Hook |
